1W to 3W ac 110/220V DC Led Power Supply 24v

E 10W Series

240807 12V300mA 客户用1W (5).png

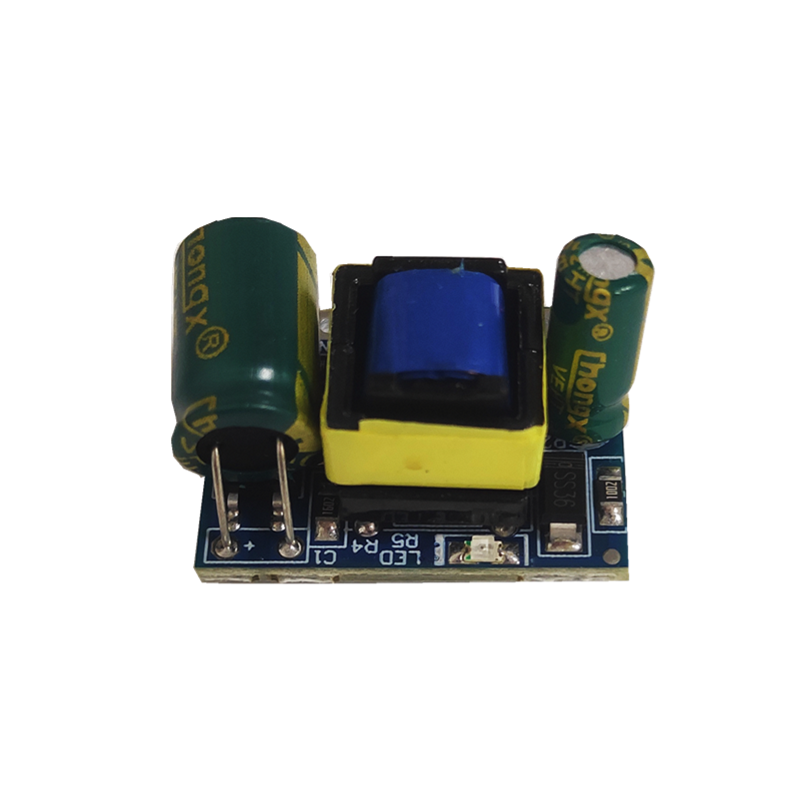

240807 12V300mA 客户用1W (6).png

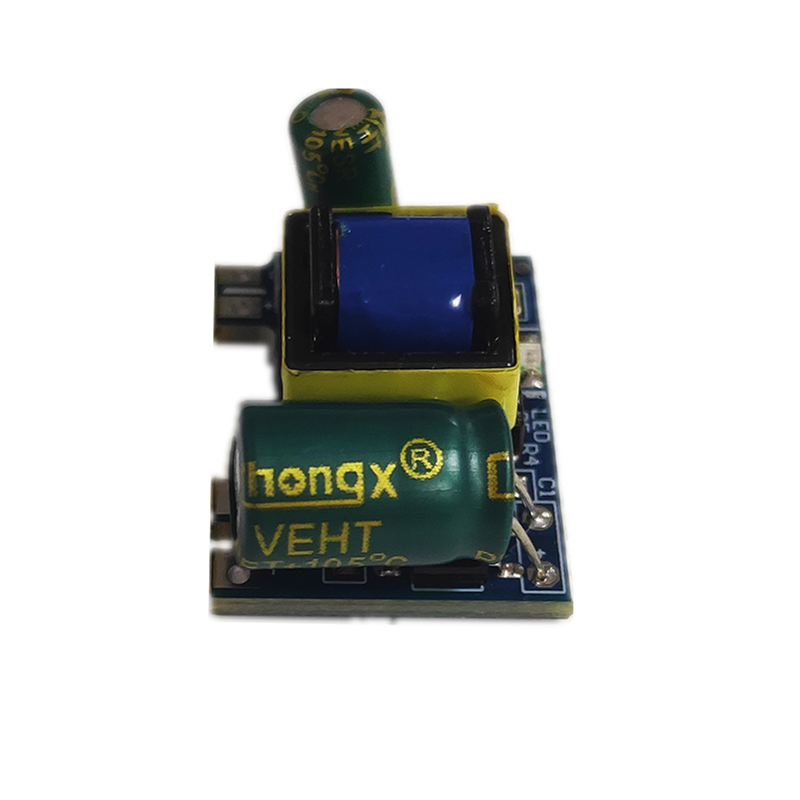

240807 12V300mA 客户用1W (4).png
240807 12V300mA 客户用1W (3).png
240807 12V300mA 客户用1W (1).png
240807 12V300mA 客户用1W (2).png

1W to 3W ac 110/220V DC Led Power Supply 24v

Feature:
* Low power consumption, high reliability
* Adopt famous brand chip & electronics
* Protections: Short circuit/Over load/Over voltage
* Cooling by free air convection or by fan
* 100% full loading burn-in test



Gofern,is a reputable and well-established manufacturer specializing in switching power supplies and power adapters. With our expertise and experience, we have cemented our position as a leader in the industry.

    Contact us
    Product Details

    Specification

    MODEL GFS-03-12
    OUTPUT DC VOLTAGE 12V
    OUTPUT POWER 3W (Max)
    CURRENT RANGE 0-300mA
    VOLTAGE ADJ. RANGE ±10%
    LOAD REGULATION ±2.0%
    VOLTAGE TOLERANCE ±2.0%
    INPUT
    VOLTAGE RANGE 110~ 240VAC
    FREQUENCY RANGE 47-63Hz
    EFFICIENCY(Typ.) 80%
    INRUSH CURRENT(Typ.) COLD START 15A/115VAC   30A/230VAC
    PROTECTION OVER LOAD 115%~135% of rated power; Pulsing hicuup shut down,auto recovery
    OVER VOLTAGE Rated output voltage of 105%~150% start overvoltage protecion
    Protection: burst mode,load of abnormal conditions removed the automatic recovery
    SHORT CIRCUIT voltage off and reset input for recovers
    ENVIRONMENT WORKING TEMP. -0℃ ~ +45℃ (Refer to output load derating curve)
    WORKING HUMIDITY 20 ~ 90% RH non-condensing
    STORAGE TEMP.,HUMIDITY -20℃ ~ +85℃ 10~95% RH
    TEMP. COEFFICIENT ±0.05%/℃
    COOLING METHOD BY FREE AIR
    OTHERS CONNECTION TERMINAL MARK:  AC-L, AC-N, FG, GND, GND, DC+, DC-
    DIMENSION 23.5*18.2*13.5m
    WEIGHT 0.06Kg/PCS
    SHELL MATERIAL None

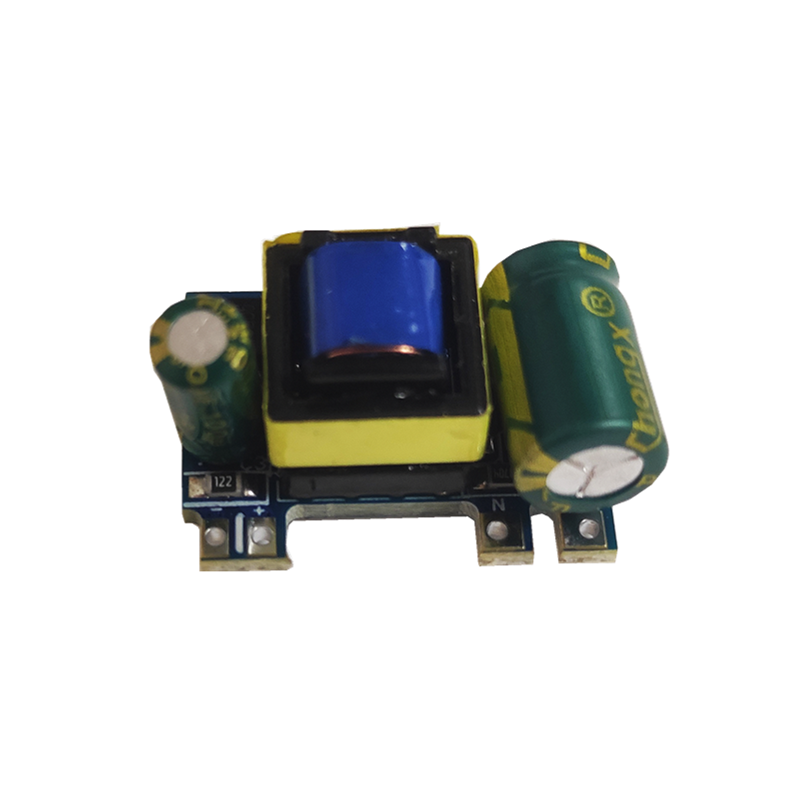

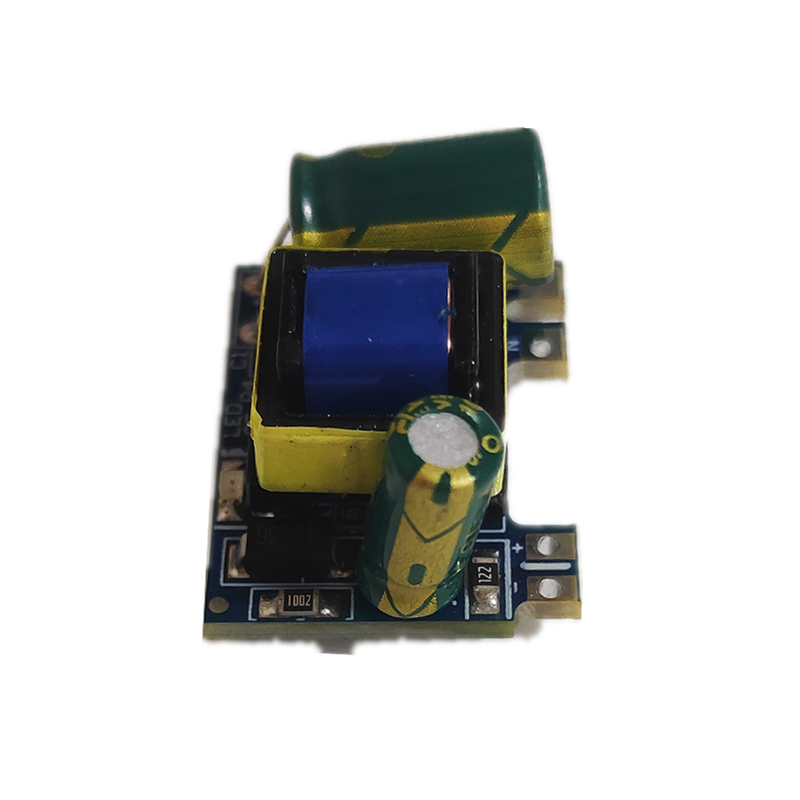

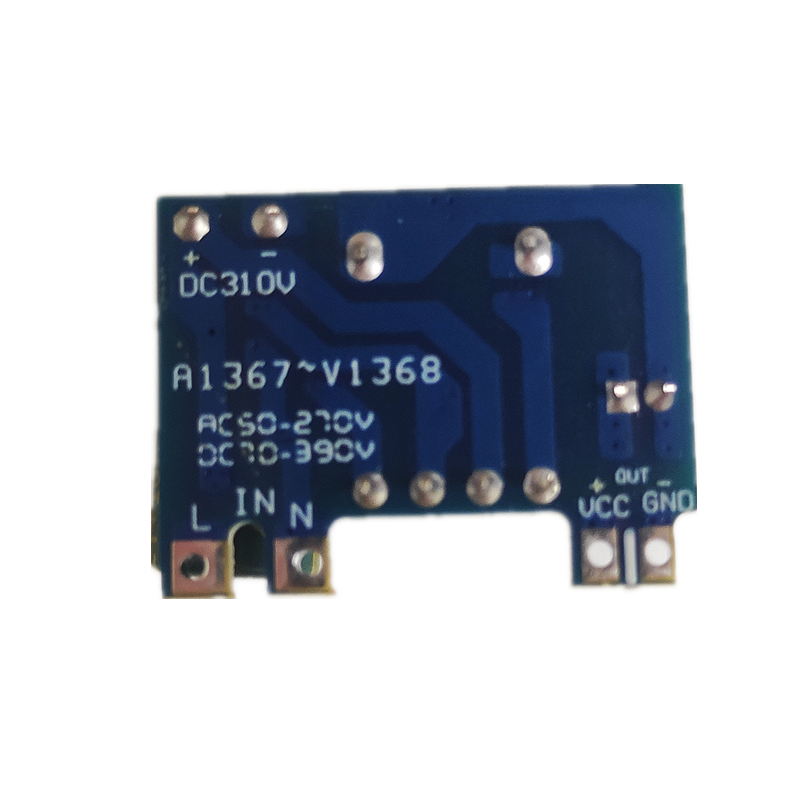

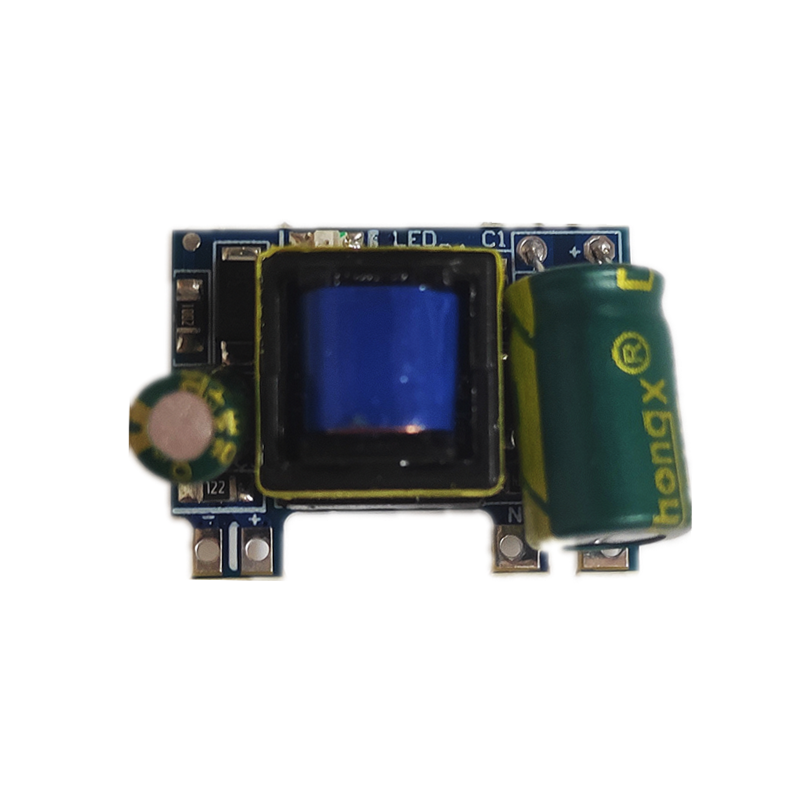

    Product Pictures



    240807 12V300mA 客户用1W (3)jtz240807 12V300mA 客户用1W (5)nb9240807 12V300mA 客户用1W (4)8b6240807 12V300mA 客户用1W (2)7g9

    APPLICATION

    GOFERN products including AC-DC power supply, super-thin power supply, slim power supply, led power supply, Led driver, battery backup power supply, UPS, power adapter, etc. are widely used in industry equipment, security system, telecom equipment, traffic system, home appliance, medical equipment, new energy industry, etc.

    Product application

    LCD screen
    Product application

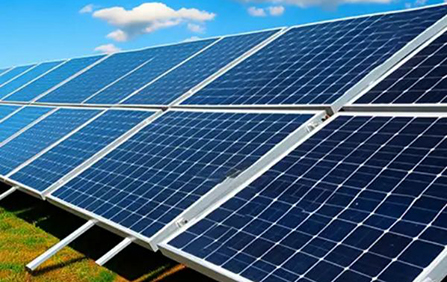

    Solar Industry
    Product application

    Railway Signal System
    Product application

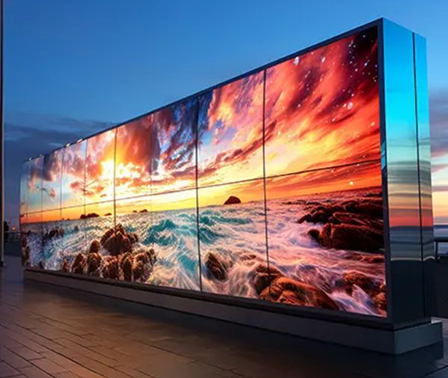

    LED Screen
    Product application

    Outdoor Ad
    Due to its high-quality construction, this power supply provides excellent durability and longevity even with heavy use and harsh environments. Medical equipment often operates around the clock, and power supplies must meet this demanding requirement. It is able to withstand continuous use, minimizing the risk of untimely failures and increasing the overall efficiency of healthcare facilities. Reliability is critical in the medical field, and this power supply delivers this seamlessly.
    The power supply is easy to install and operate, further enhancing its appeal. With its user-friendly interface and intuitive controls, medical professionals can quickly and easily set it up to power their essential equipment. This accessibility reduces the time required for installation and training, allowing healthcare facilities to smoothly integrate power into their existing processes.

    FAQ

    Frequently Ask Questions
    We are professional electric switching power supply consulting, design, solution provider and manufacturer. Our mainly products including industry power supplies, communication device power supplies, power adapters, led power supply,etc.
    learn more

    Q1: What output voltage can you supply?

    A:5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (support customization).

    Q2: Do you inspect the finished products?

    A: Yes. Each product is 200% tested and inspected before package, then we have OQC to make sampling inspection to ensure good quality products. Our current quality level for linear adapters is below 100PPM.

    Q3: How can I get the samples?

    A:If you need some samples to test,please contact our staff and you need to pay for shipping.

    Q4: Why should you buy from us not from other suppliers?

    A: We are the leading manufacture in switching power supply. The price and quality are competitive in the market, Professional design team and after-sales service.

    Q5: Is your power supply with copper transform or something?

    A:We can do with complete copper transformer.

    Q6: We are online seller, if you can provide the professional picture pack to us?

    A: Yes, please leave your company website and contact information. Our sales person will send you the picture pack straightly!
