AC/DC 24V 1.5A din rail power supply

DR 30W Series

AC/DC 24V 1.5A din rail power supply

Feature:

* Low power consumption, high reliability

* Adopt famous brand chip & electronics

* Protections: Short circuit/Over load/Over voltage

* Cooling by free air convection or by fan

* 100% full loading burn-in test



Not only do we offer AC-DC and DC-DC power supplies, but our product range is suitable for both indoor and outdoor applications. Please let us know your specific requirements and we will be happy to provide you with a tailor-made solution.

    Specification

    MODEL DR-30-24
    OUTPUT DC VOLTAGE 24V
    OUTPUT POWER 30W
    CURRENT RANGE 1.5A
    VOLTAGE ADJ. RANGE ±10%
    LOAD REGULATION ±2.0%
    VOLTAGE TOLERANCE ±2.0%
    INPUT
    VOLTAGE RANGE 110~ 240VAC
    FREQUENCY RANGE 47-63Hz
    EFFICIENCY(Typ.) 80%
    INRUSH CURRENT(Typ.) COLD START 15A/115VAC   30A/230VAC
    PROTECTION OVER LOAD 115%~135% of rated power; Pulsing hicuup shut down,auto recovery
    OVER VOLTAGE Rated output voltage of 105%~150% start overvoltage protecion
    Protection: burst mode,load of abnormal conditions removed the automatic recovery
    SHORT CIRCUIT voltage off and reset input for recovers
    ENVIRONMENT WORKING TEMP. -0℃ ~ +45℃ (Refer to output load derating curve)
    WORKING HUMIDITY 20 ~ 90% RH non-condensing
    STORAGE TEMP.,HUMIDITY -20℃ ~ +85℃ 10~95% RH
    TEMP. COEFFICIENT ±0.05%/℃
    COOLING METHOD BY FREE AIR
    OTHERS CONNECTION TERMINAL MARK:  AC-L, AC-N, FG, GND, GND, DC+, DC-
    DIMENSION 90*54.5*35mm
    WEIGHT 0.25Kg/PCS
    SHELL MATERIAL Plastic

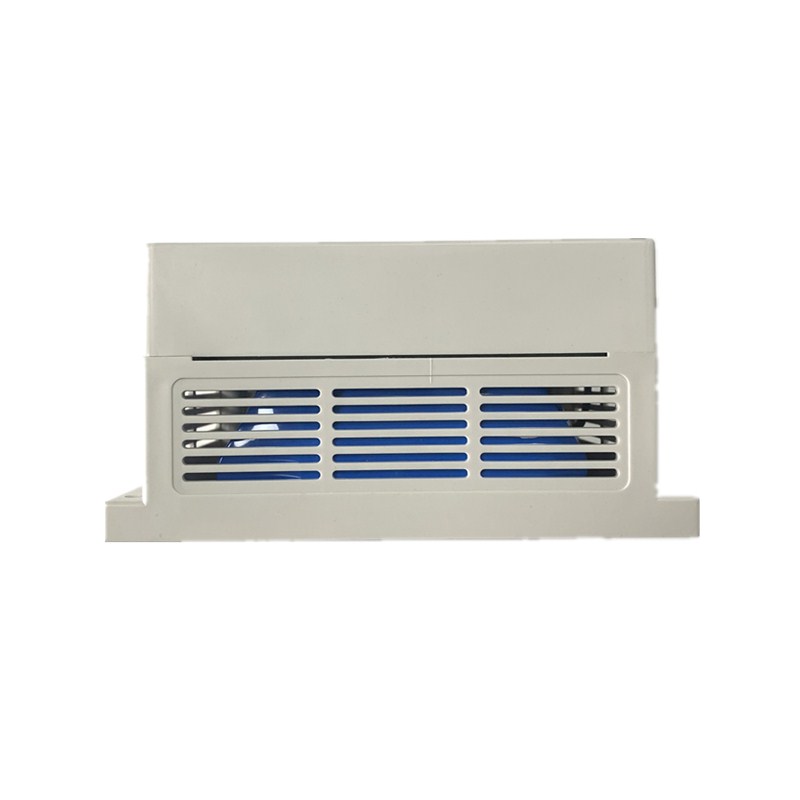

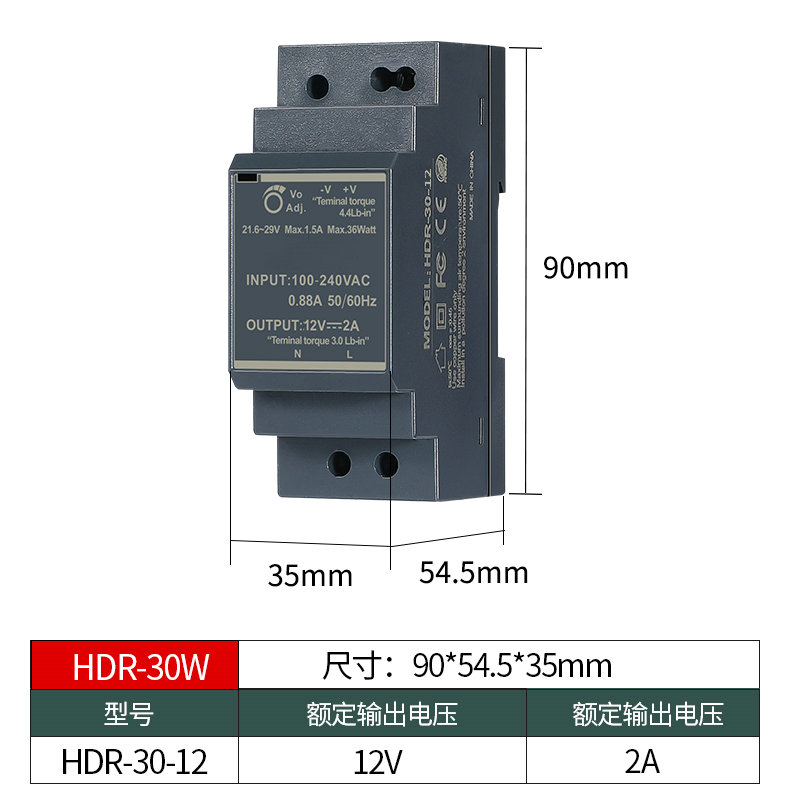

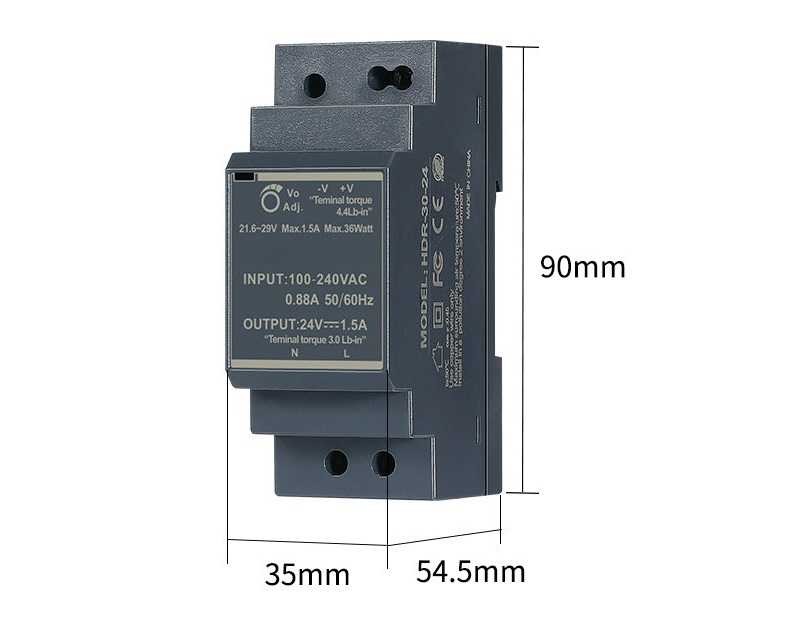

    Product Pictures



    HD-30-1218rHDR3024yhbHD-30-12 (1)4awHDR3024(1)4y4

    APPLICATION

    GOFERN products including AC-DC power supply, super-thin power supply, slim power supply, led power supply, Led driver, battery backup power supply, UPS, power adapter, etc. are widely used in industry equipment, security system, telecom equipment, traffic system, home appliance, medical equipment, new energy industry, etc.

    12/24V 30W-480W Din rail power supply! This power supply is designed to provide reliable energy to your CCTV cameras, ensuring they run smoothly and efficiently. With its and security features, it's the perfect choice for all your monitoring needs.
    Power supplies are highly sought after and have become a hot-selling product on the market. It is popular with professional installers and home users alike due to its excellent performance and reliability. With this power supply, you can rest assured that your camera system will always have the energy it needs to operate optimally.
    One of the main features of this power supply is its safety features. We understand the importance of maintaining the security and integrity of your surveillance systems. That’s why our power supplies feature top-notch safety measures to ensure your CCTV cameras are protected from any potential power fluctuations or surges. With its rugged construction and advanced circuitry, this power supply guarantees stable, uninterrupted power to keep your camera running.
