18 Channels CCTV Camera Power Supply Box AC110-220V to DC 12V20A

18 Channel

12V20A 18CH (5)_副本.jpg
12V20A 18CH (2)_副本.jpg
12V20A 18CH (4)_副本.jpg
12V20A 18CH (9)_副本.jpg

18 Channels CCTV Camera Power Supply Box AC110-220V to DC 12V20A

Feature:
* Low power consumption, high reliability
* Adopt famous brand chip & electronics
* Protections: Short circuit/Over load/Over voltage
* Cooling by free air convection or by fan
* 100% full loading burn-in test





Gofernpower is a professional leader and experienced manufacturer of switching power supply and power adapter in China. Our products are widely used in many fields and all over the world with high quality and reasonable price.
Please write message to us now!

    Contact us
    Product Details

    Specification

    MODEL GF250-18H-AM
    OUTPUT DC VOLTAGE 12V
    OUTPUT POWER 240W
    CURRENT RANGE 20A
    VOLTAGE ADJ. RANGE ±10%
    LOAD REGULATION ±2.0%
    VOLTAGE TOLERANCE ±2.0%
    INPUT
    VOLTAGE RANGE 110~ 240VAC
    FREQUENCY RANGE 47-63Hz
    EFFICIENCY(Typ.) 80%
    INRUSH CURRENT(Typ.) COLD START 15A/115VAC   30A/230VAC
    PROTECTION OVER LOAD 115%~135% of rated power; Pulsing hicuup shut down,auto recovery
    OVER VOLTAGE Rated output voltage of 105%~150% start overvoltage protecion
    Protection: burst mode,load of abnormal conditions removed the automatic recovery
    SHORT CIRCUIT voltage off and reset input for recovers
    ENVIRONMENT WORKING TEMP. -0℃ ~ +45℃ (Refer to output load derating curve)
    WORKING HUMIDITY 20 ~ 90% RH non-condensing
    STORAGE TEMP.,HUMIDITY -20℃ ~ +85℃ 10~95% RH
    TEMP. COEFFICIENT ±0.05%/℃
    COOLING METHOD BY FREE AIR
    OTHERS CONNECTION TERMINAL MARK:  AC-L, AC-N, FG, GND, GND, DC+, DC-
    DIMENSION 315*206*55mm
    WEIGHT 2.1Kg/PC
    SHELL MATERIAL Aluminum

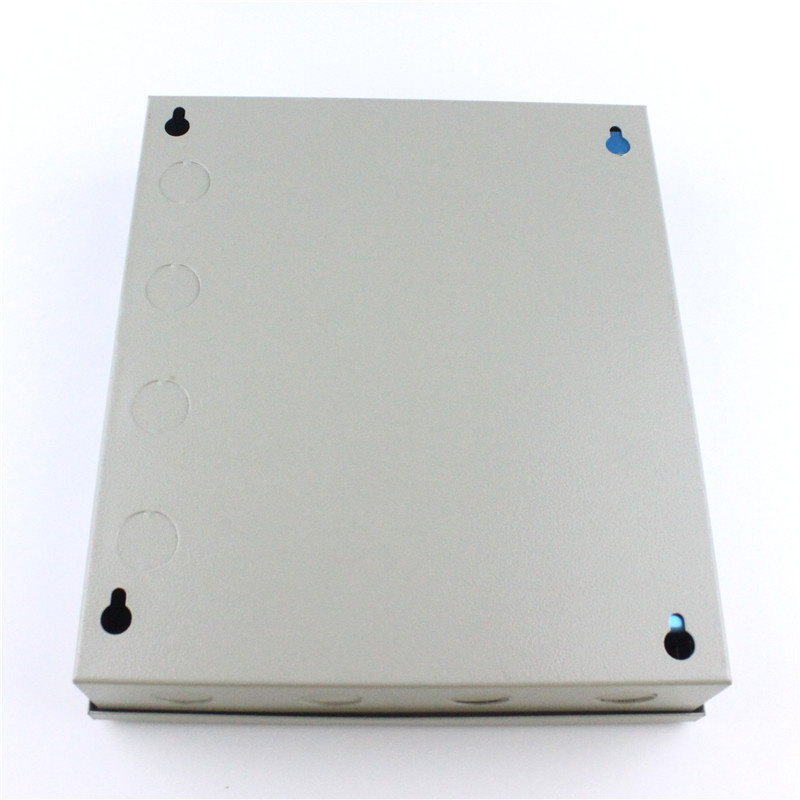

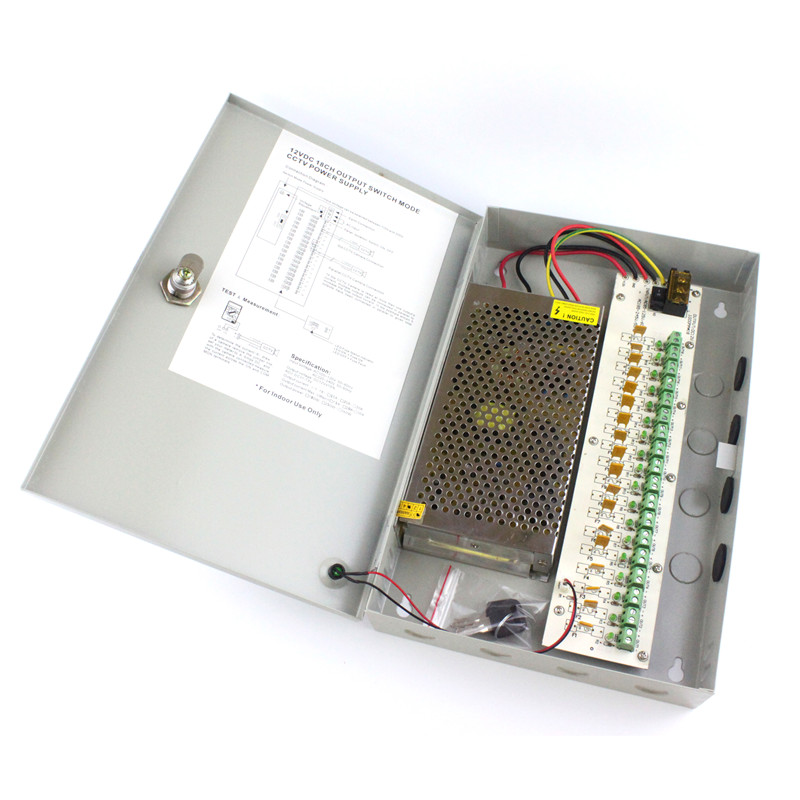

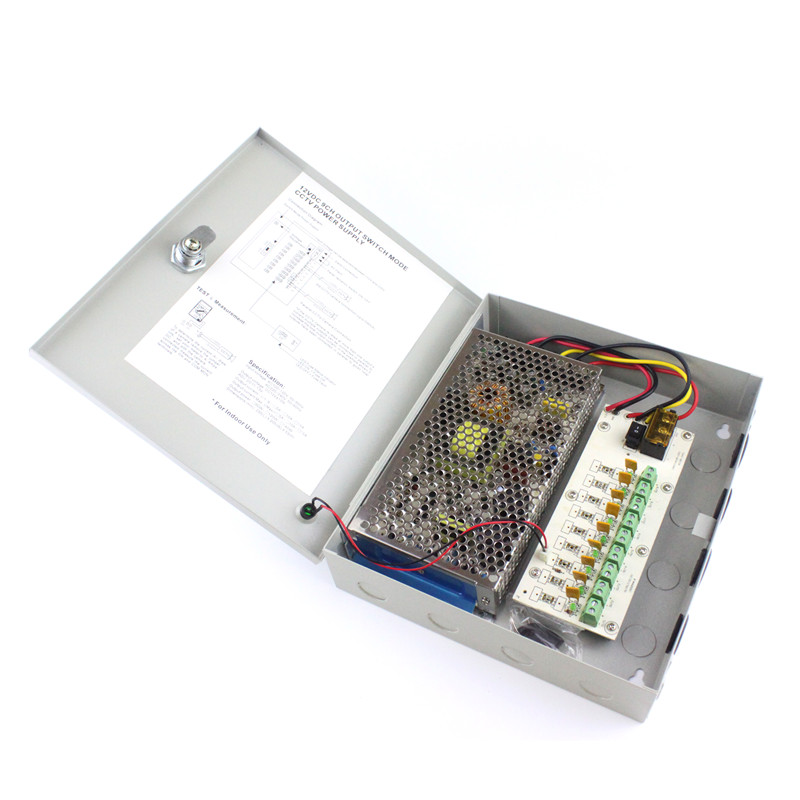

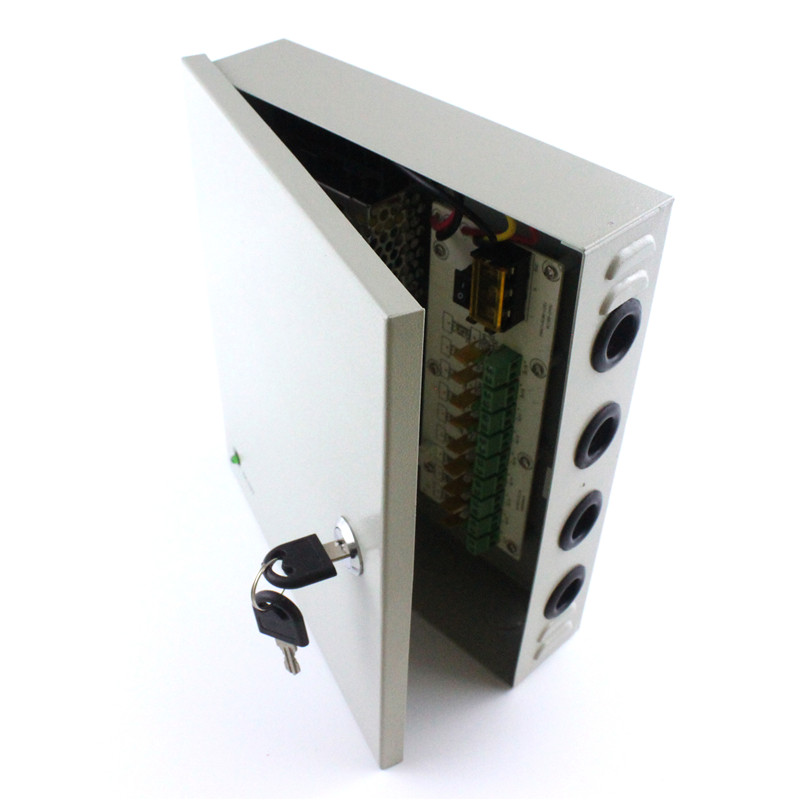

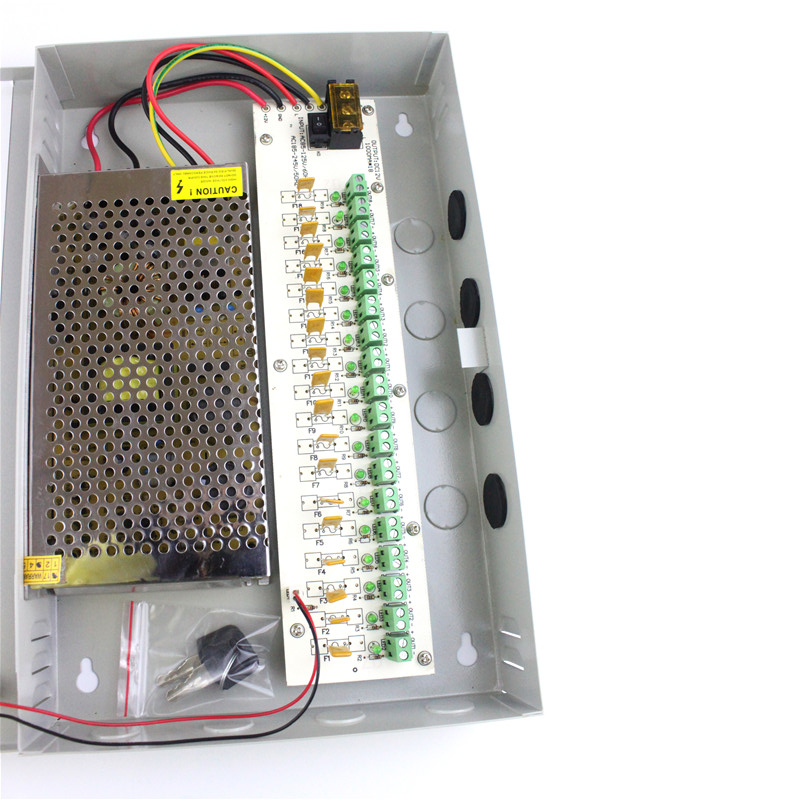

    Product Pictures



    12V20A 18CH (10)_副本12V20A 18CH (2)_副本12V20A 18CH (4)_副本12V20A 18CH (9)_副本

    APPLICATION

    GOFERN products including AC-DC power supply, super-thin power supply, slim power supply, led power supply, Led driver, battery backup power supply, UPS, power adapter, etc. are widely used in industry equipment, security system, telecom equipment, traffic system, home appliance, medical equipment, new energy industry, etc.

    Product application

    LCD screen
    Product application

    Solar Industry
    Product application

    Railway Signal System
    Product application

    LED Screen
    Product application

    Outdoor Ad
    AC/DC 12V 20A Industrial power supply is engineered to provide consistent and reliable power output. Its high-quality components ensure efficient power conversion, minimize energy losses and improve overall system performance. Whether you need to power motors, control systems, or other industrial equipment, this power supply provides stable, clean output to ensure smooth operation.
    The Gofern power adapter is a versatile and reliable solution for powering a wide range of electronic devices. With its wide range of applications, power-saving features and multiple voltage options, it is the perfect choice for monitoring systems, lighting systems, charging and printers. Our commitment to quality and customer satisfaction, along with competitive pricing and certification, make us a trusted choice for your power needs.
