PSU 24V 10A din rail switching power supply

DR 240W Series

PSU 24V 10A din rail switching power supply
PSU 24V 10A din rail switching power supply
PSU 24V 10A din rail switching power supply
PSU 24V 10A din rail switching power supply
PSU 24V 10A din rail switching power supply
PSU 24V 10A din rail switching power supply

PSU 24V 10A din rail switching power supply

Feature:

* Low power consumption, high reliability

* Adopt famous brand chip & electronics

* Protections: Short circuit/Over load/Over voltage

* Cooling by free air convection or by fan

* 100% full loading burn-in test


Gofern,enjoys a high reputation in China and is good at manufacturing cutting-edge switching power supplies and power adapters. With rich expertise and deep understanding of the industry, we are proud to be the first to provide high-quality and reliable products to various industries around the world.

    Contact us
    Product Details

    Specification

    MODEL DR-240-24
    OUTPUT DC VOLTAGE 24V
    OUTPUT POWER 240W
    CURRENT RANGE 10A
    VOLTAGE ADJ. RANGE ±10%
    LOAD REGULATION ±2.0%
    VOLTAGE TOLERANCE ±2.0%
    INPUT
    VOLTAGE RANGE 110~ 240VAC
    FREQUENCY RANGE 47-63Hz
    EFFICIENCY(Typ.) 80%
    INRUSH CURRENT(Typ.) COLD START 15A/115VAC   30A/230VAC
    PROTECTION OVER LOAD 115%~135% of rated power; Pulsing hicuup shut down,auto recovery
    OVER VOLTAGE Rated output voltage of 105%~150% start overvoltage protecion
    Protection: burst mode,load of abnormal conditions removed the automatic recovery
    SHORT CIRCUIT voltage off and reset input for recovers
    ENVIRONMENT WORKING TEMP. -0℃ ~ +45℃ (Refer to output load derating curve)
    WORKING HUMIDITY 20 ~ 90% RH non-condensing
    STORAGE TEMP.,HUMIDITY -20℃ ~ +85℃ 10~95% RH
    TEMP. COEFFICIENT ±0.05%/℃
    COOLING METHOD BY FREE AIR
    OTHERS CONNECTION TERMINAL MARK:  AC-L, AC-N, FG, GND, GND, DC+, DC-
    DIMENSION 113.5*63*125.2mm
    WEIGHT 0.65Kg/PCS
    SHELL MATERIAL Aluminum

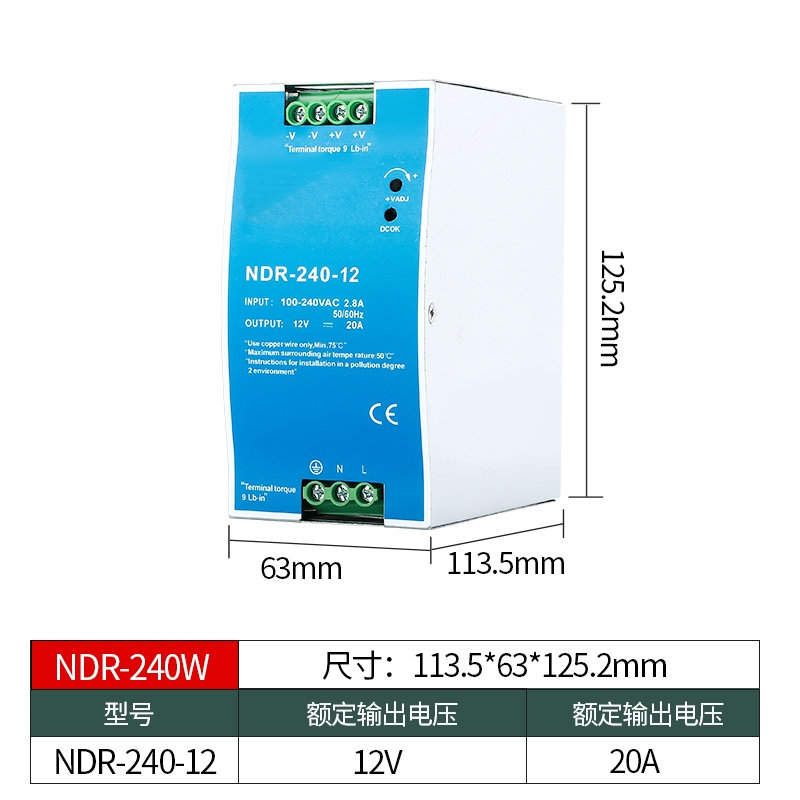

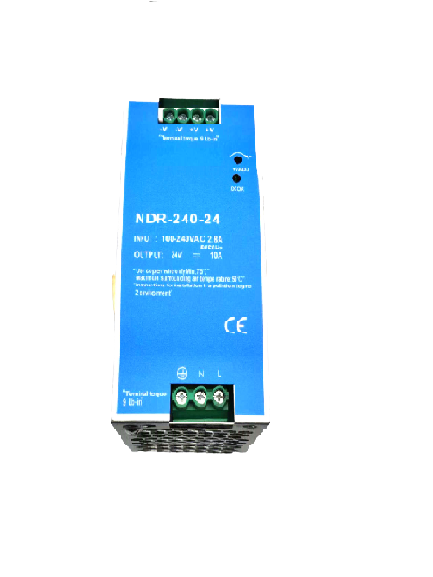

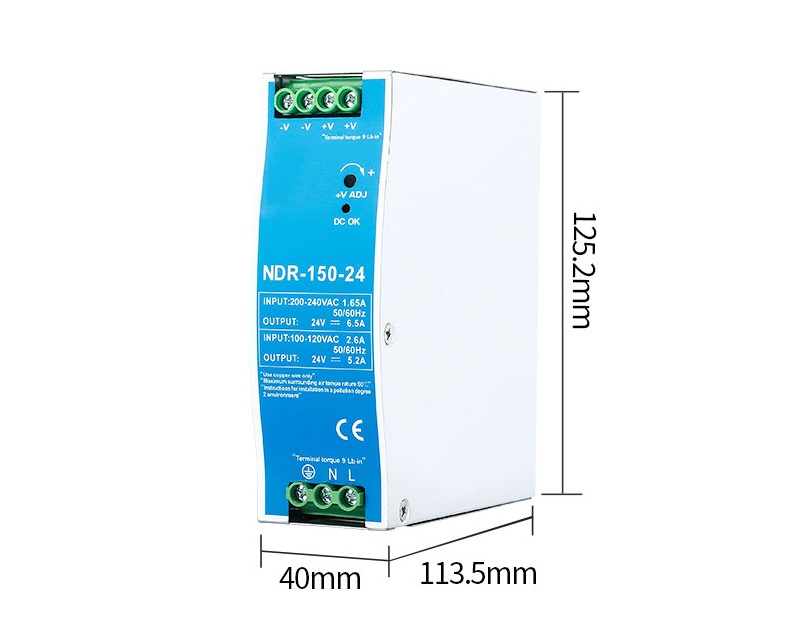

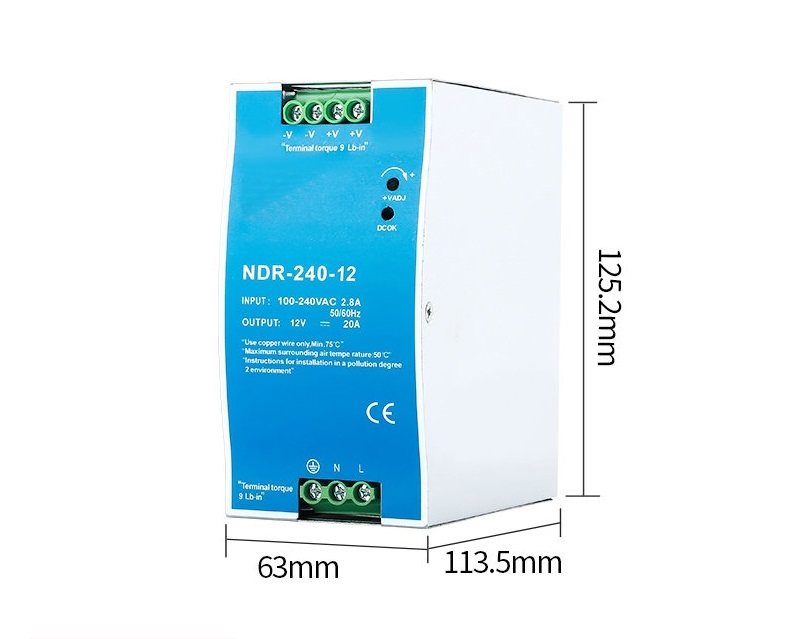

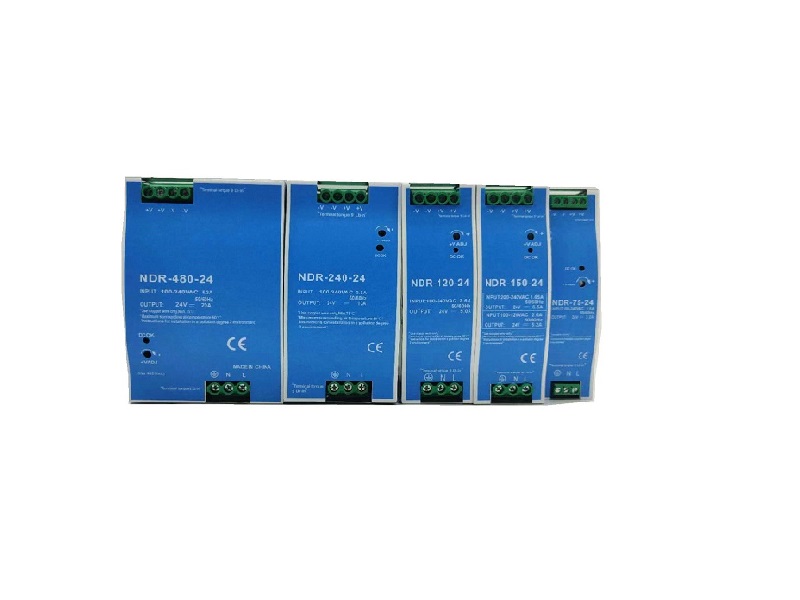

    Product Pictures



    NDR24012（1）ui5NDR24024（1）8p6NDR24012dn7NDR24024hzh

    APPLICATION

    GOFERN products including AC-DC power supply, super-thin power supply, slim power supply, led power supply, Led driver, battery backup power supply, UPS, power adapter, etc. are widely used in industry equipment, security system, telecom equipment, traffic system, home appliance, medical equipment, new energy industry, etc.

    Product application

    LCD screen
    Product application

    Solar Industry
    Product application

    Railway Signal System
    Product application

    LED Screen
    Product application

    Outdoor Ad
    This power supply is highly flexible.This flexibility enables healthcare professionals to leverage power across departments and units within a healthcare organization, optimizing its use and maximizing its value.
    A medical device power supply is a premium product designed to meet the power needs of medical devices while prioritizing safety, efficiency, and reliability. With its medical certification and widespread use in European countries, it has won the recognition and trust of the medical industry. Its superior features, including advanced security protection, unparalleled efficiency, compact design and durability, make it ideal for healthcare facilities worldwide. Whether during critical medical procedures.

    FAQ

    Frequently Ask Questions
    We are professional electric switching power supply consulting, design, solution provider and manufacturer. Our mainly products including industry power supplies, communication device power supplies, power adapters, led power supply,etc.
    learn more

    Q1: What is your MOQ of power supply?

    A:One pieces.

    Q2: What output voltage can you supply?

    A:5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (support customization).

    Q3: How many years warranty of your switching power supply?

    A: 2 years.

    Q4: Can you make OEM?

    A:Yes,OEM ODM provided.

    Q5: Could you please send me the free sample of power supply?

    A: Yes，but we can deduct the sample cost for you in your next order.

    Q6: How long can I get my order?

    A: For samples, we will finish production and ship within 3~5 working days. For bulk orders, usually 15~20 working days and depends on your design.
