12W led charger 12V 1A switching power Adapter Dc Ac

GF-A 10W Wall Series

12W led charger 12V 1A switching power Adapter Dc Ac
12W led charger 12V 1A switching power Adapter Dc Ac
12W led charger 12V 1A switching power Adapter Dc Ac
12W led charger 12V 1A switching power Adapter Dc Ac
12W led charger 12V 1A switching power Adapter Dc Ac

12W led charger 12V 1A switching power Adapter Dc Ac

Gofern power is a professional leader and experienced manufacturer of switching power supply and power adapter in China. Our products are widely used in many fields and all over the world with high quality and reasonable price. Please write message to us now!


Feature:

* Low power consumption, high reliability

* Adopt famous brand chip & electronics

* Protections: Short circuit/Over load/Over voltage

* Cooling by free air convection or by fan

* 100% full loading burn-in test


    Contact us
    Product Details

    Specification

    MODEL GF-120112NS
    OUTPUT DC VOLTAGE 12V
    OUTPUT POWER 12W
    CURRENT RANGE 2A
    VOLTAGE ADJ. RANGE ±10%
    LOAD REGULATION ±2.0%
    VOLTAGE TOLERANCE ±2.0%
    CONNECTOR 5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin, mini USB,or customized requirement
    DC CABLE 1.15M or  customized requirement
    INPUT AC CABLE US UK AU EU KR IN etc.
    VOLTAGE RANGE 110~ 240VAC
    FREQUENCY RANGE 47-63Hz
    EFFICIENCY(Typ.) 80%
    INRUSH CURRENT(Typ.) COLD START 15A/115VAC   30A/230VAC
    PROTECTION OVER LOAD 115%~135% of rated power; Pulsing hicuup shut down,auto recovery
    OVER VOLTAGE Rated output voltage of 105%~150% start overvoltage protecion
    Protection: burst mode,load of abnormal conditions removed the automatic recovery
    SHORT CIRCUIT voltage off and reset input for recovers
    ENVIRONMENT WORKING TEMP. -0℃ ~ +45℃ (Refer to output load derating curve)
    WORKING HUMIDITY 20 ~ 90% RH non-condensing
    STORAGE TEMP.,HUMIDITY -20℃ ~ +85℃ 10~95% RH
    TEMP. COEFFICIENT ±0.05%/℃
    COOLING METHOD BY FREE AIR
    OTHERS CONNECTION TERMINAL MARK:  AC-L, AC-N, FG, GND, GND, DC+, DC-
    DIMENSION L74.5*W41.5*H28.8MM
    WEIGHT 0.08Kg/PCS
    SHELL MATERIAL Black plastic or white plastic

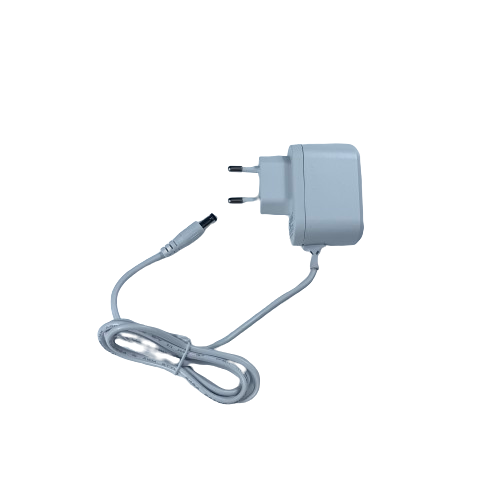

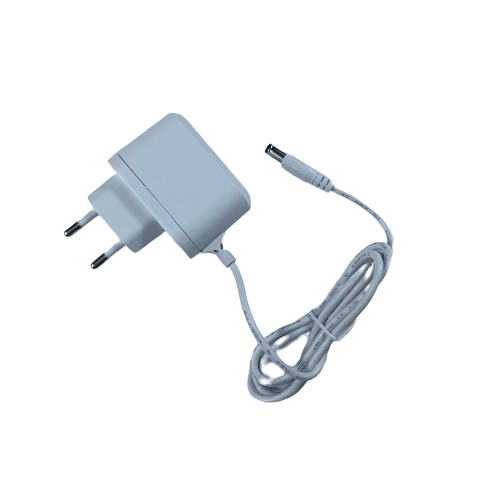

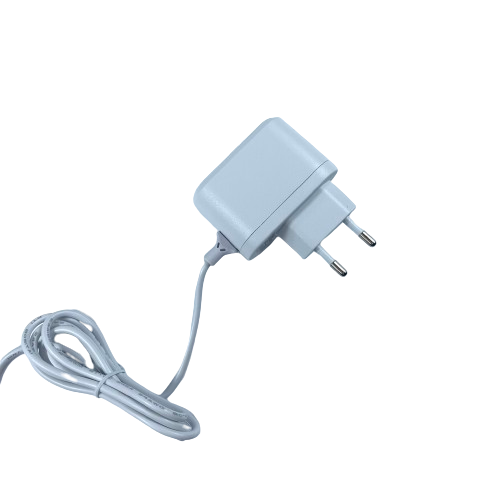

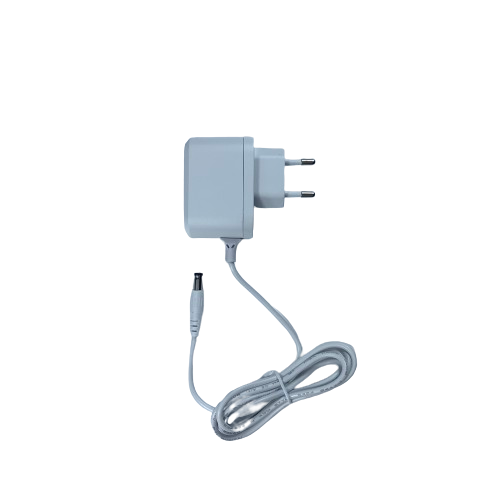

    Product Pictures



    白底图2xvq白底图4s3白底图402b白底图3vrj

    APPLICATION

    Our expertise lies in providing reliable and efficient power solutions for a wide range of applications, including CCTV cameras, communications equipment, power equipment, medical equipment, industrial control equipment and air purifiers

    Product application

    LCD screen
    Product application

    Solar Industry
    Product application

    Railway Signal System
    Product application

    LED Screen
    Product application

    Outdoor Ad
    The power adapter is a versatile device that meets a wide range of electronic needs, making it an important component for printers, electronic screens, LED strips, CCTV cameras and laboratory equipment. This cutting-edge device is designed to provide efficient power for these applications, ensuring optimal performance and reducing the risk of damage due to power fluctuations, Our power adapters are made with best-in-class components to ensure the durability and long-term reliability of your equipment. We offer power adapters at competitive prices, allowing customers to enjoy high quality products without spending too much.

    FAQ

    Frequently Ask Questions
    We are professional electric switching power supply consulting, design, solution provider and manufacturer. Our mainly products including industry power supplies, communication device power supplies, power adapters, led power supply,etc.
    learn more

    Q1: What's your express service?

    A: Fedex, DHL, EMS, SF Express with great discount.

    Q2: Do you inspect the finished products?

    A: Yes. Each product is 200% tested and inspected before package, then we have OQC to make sampling inspection to ensure good quality products. Our current quality level for linear adapters is below 100PPM.

    Q3: Price term?

    A: EXW/FOB/CIF/FCA.

    Q4: Why should you buy from us not from other suppliers?

    A: We are the leading manufacture in switching power supply. The price and quality are competitive in the market, Professional design team and after-sales service.

    Q5: If it will cause a extra cost for doing the logo on the product?

    A: If the order quantity is small, a small fee will be charged, if the order quantity is large, it will not be required.

    Q6: We are online seller, if you can provide the professional picture pack to us?

    A: Yes, please leave your company website and contact information. Our sales person will send you the picture pack straightly!
